HUAHENGCHI 40W Laser Engraving Head With Air Assist Laser Engraver CNC Accessories Laser Cutter Laser Module Wood Working Tool

Laser Module Features：

- Designed for laser cutting machines, laser engraving machines, CNC engraving machines, DIY lasers, CNC Mill, DIY Engraving and Cutting, this 40W laser module is widely used on CNC3018 Pro, Max, Plus, it's compatible with most 2-axis, 3-axis, 4-axis cnc controller boards and most recording programs in market.

- Fixed Focus, no need to focus, easy to use.

- Can engrave mirror stainless steel directly.

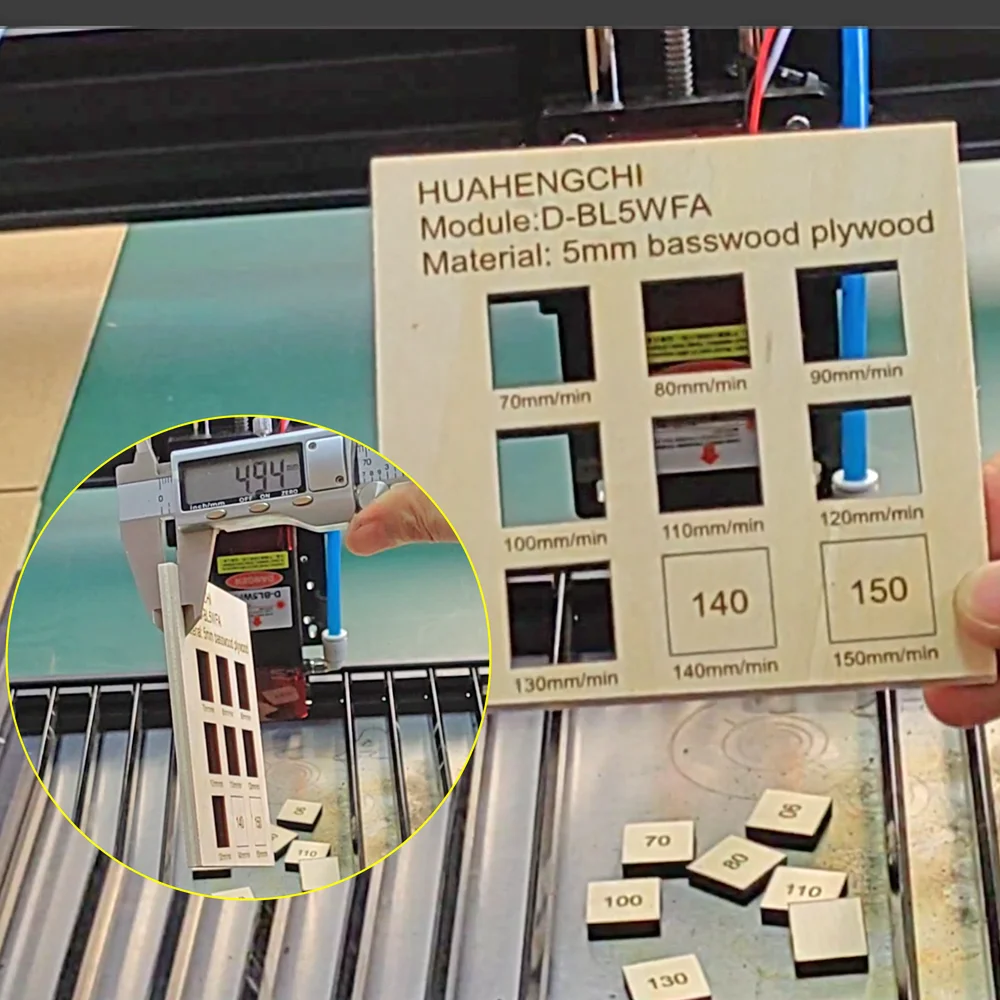

- Can cut 4-5mm basswood plywood by one pass.

- With Air Assist: D-BL5WFA with air nozzle to get clean-out edges, improve cutting performance.

- Short Focus Length: D-BL5WF with 23mm focus length engraves better.

- Protective Cover Design: with a laser protective cover, it can effectively filter blue light when engraving or cutting with this laser head.

- Engravable Materials: MDF, Balsa, Paper, Wood, Fabric, Plastic, Leather, Plywood, Foam Paper, Anodized Aluminum, Stainless Steel

- Cuttable Materials: Cardboard, Non-woven Fabric, Plywood, MDF, Acrylic, some thin plastic board

General Specifications:

Model：D-BL5WFA/ D-BL5WF

Electric Power：20W

Optical power output：5-5.5W

Effect power output: 40W

Laser Wavelength：445±5nm

Beam Shape：Dot ( Not Focusable )

Operating Voltage：DC 12V

Working Current：1.6~1.8A

PWM/TTL Input：DC5V

TTL&PWM Modulation：YES, Compatible with Both TTL & PWM Modulation

Input Interface：XH2.54-3Pin (+,-, PWM/TTL)

Heatsink Material：Aircraft Aluminum + PCTG

Luminous Color：Semiconductor blue light

Life Time：20000 hours

Package includes (D-BL5WFA):

1* 40W laser module with air assist nozzle

1* 32*70mm Slide

1* 06M5 tube connector

1* 06M8 Pump connector

1* 3pin 80cm cable

1* Hexagon wrench

Package includes (D-BL5WF):

1* 40W laser module with wind gathering hood

1* 3pin 80cm cable

1* fixed focus column
