SPECIFICATIONS

Brand Name: HUAHENGCHI

Certification: CE

Origin: Mainland China

Model Number: D-BL10WF

Module Name: 450nm 80W laser module

Spare Parts Type: laser accessories, laser module, laser head parts kits replacement

Application: wood leather engraving and cutting

Features: Fixed focus

Condition: New

Lifetime: 10000 hours

Warranty: 1 year

80W Laser Module Head Focal Fixed 445nm Blue Light Module for CNC Laser Engraver Cutting Engraving Marking Machine Wood Tools



Module Features：

- Designed for Laser Engraver,CNC Mill, DIY Engraving and Cutting.

- Fixed Focus, no need to focus, easy to use.

- D-BL10WF laser module can engrave stainless steel at speed of 30mm/s with 50mm focus length. D-BL5WFA laser module can engrave stainless steel at speed of 30mm/s with 30mm focus length.

- D-BL10WF can cut 8-10mm Plywood by one pass. D-BL5WFA can cut 4-5mm Plywood by one pass.

- Professional air assistance: highly improve cutting ability.

- Engravable Materials: MDF, Balsa, Paper, Wood, Fabric, Plastic, Leather, Plywood, Foam Paper, Anodized Aluminum, Stainless Steel, Ceramics, Bone, Coated glass, Black acrylic, Stone, Bamboo, Rubber, Leather, etc.

- Cuttable Materials: Cardboard, Non-woven Fabric, Plywood, MDF, Acrylic, some thin plastic board

- Note: Blue/purple/white/transparent materials, aluminum without oxide layer cannot be engraved.


General Specifications:

Model：D-BL10WF

Heatsink Material：Aluminum + PETG

Luminous Color：Blue

Module Size：40mm x 40mm x 148.5mm

Cooling Mode：12V 10000 rpm 40mm cooling fan

TTL&PWM Modulation：YES, Compatible with Both TTL & PWM Modulation

Wire Rod: 22# 3P2.54

Product Net Weight: 238g


Technical Parameters (D-BL10WF)：

Electric Power：12V(3A-3.5A)

Optical power output：>10W

Effect power output: 80W

Laser Wavelength：445±5nm

Beam Shape：Dot ( Not Focusable )

PWM/TTL Input：DC5V

Input Interface：XH2.54-3Pin (+,-, PWM/TTL)

Operating temperature range：-10 ℃ ~ 40 ℃

Package includes( D-BL10WF) :

1* 80W laser module with wind gathering hood

1* air assist nozzle with lens

1* 06M5 tube connector

1* 06M8 Pump connector

1* 3pin 80cm cable

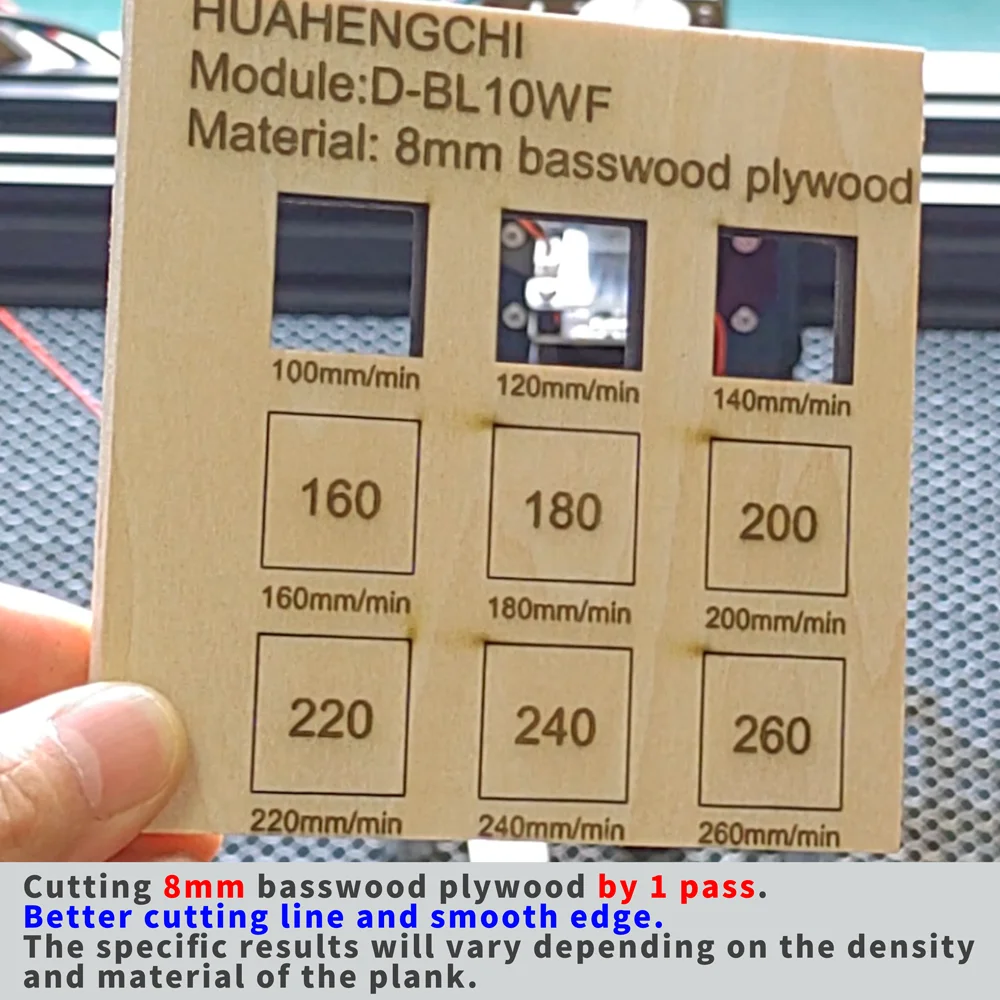

Can cut 8-10mm basswood plywood by one pass

Can engrave stainless steel directly and perpectly.
