20W Laser Module High Power Laser Engraving Head TTL Blue Laser Head for CNC Router Laser Cutting Machine Engraver DIY Wood Tool
20W Laser Module High Power Laser Engraving Head TTL Blue Laser Head for CNC Router Laser Cutting Machine Engraver DIY Wood Tool
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: HUAHENGCHI
Certification: CE
Origin: Mainland China
Model Number: D-BL22WF
Optical Power Output: 22W (21~23W)
Spare Parts Type: laser accessories, laser module, laser head parts kits replacement
Application: wood leather engraving and cutting

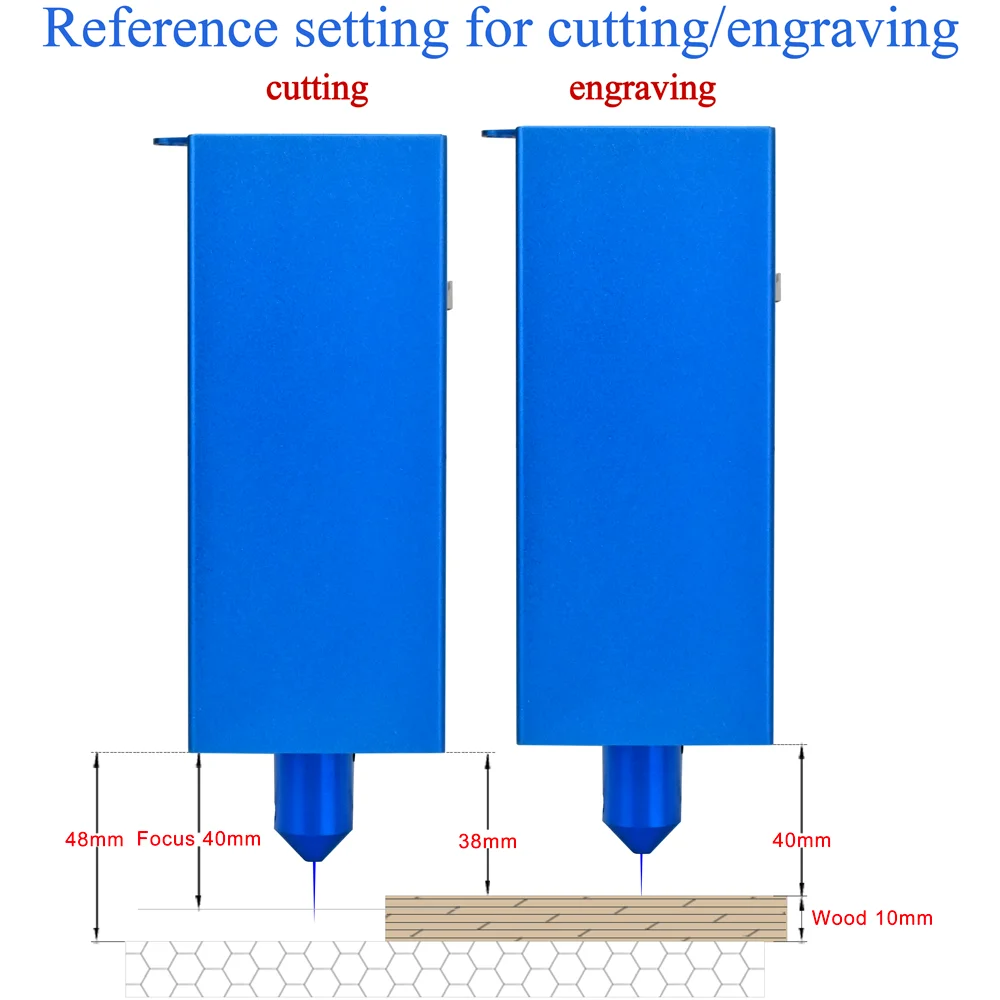

Features: Fixed focus
Condition: New
Lifetime: 10000 hours
Warranty: 1 year
20W Laser Module High Power Laser Engraving Head TTL Blue Laser Head for CNC Router Laser Cutting Machine Engraver DIY Wood Tool
Module Features:

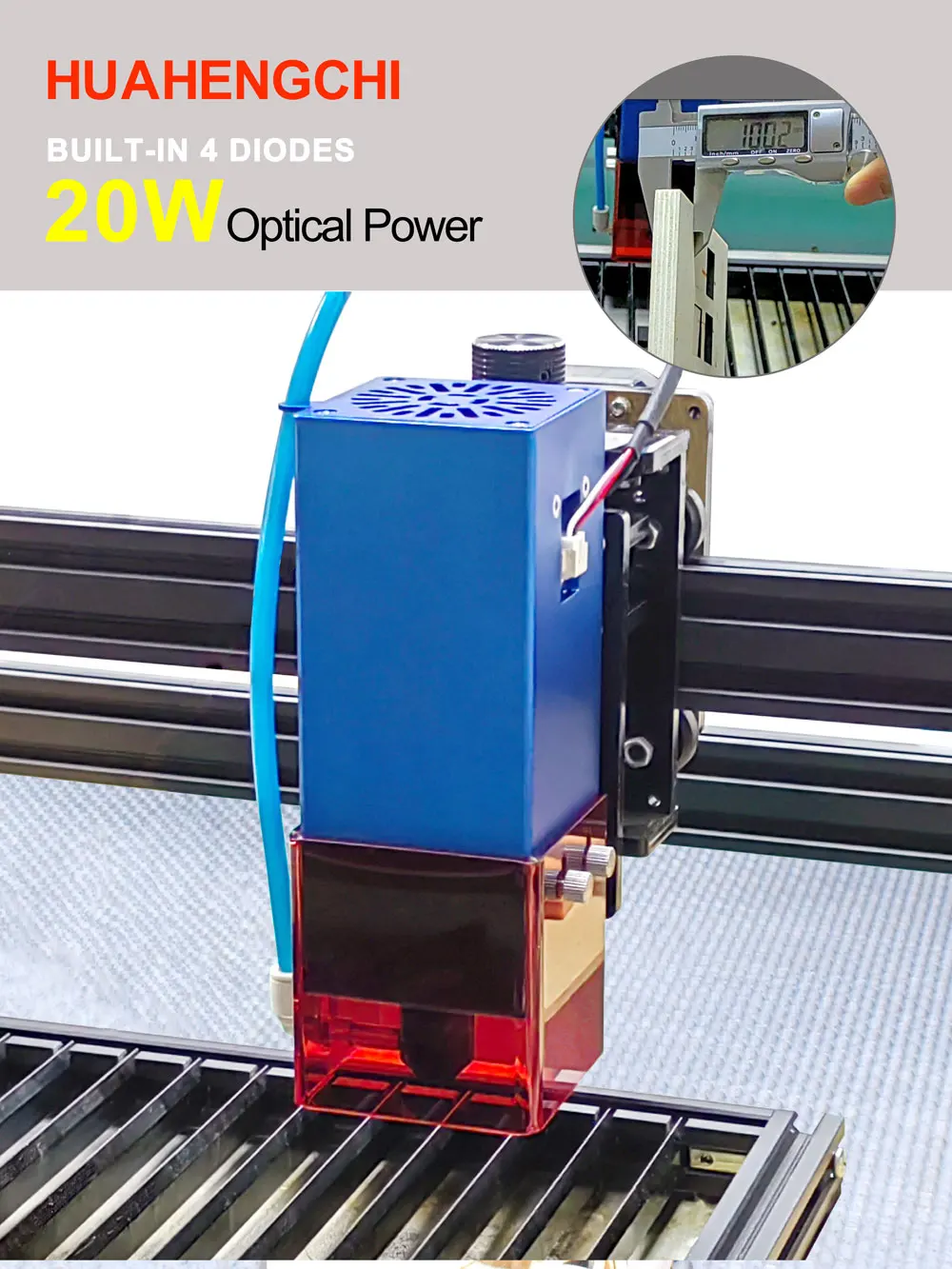

- Designed for Laser Engraver, CNC Mill, DIY Engraving and Cutting.
- Fixed Focus, no need to focus, easy to use.

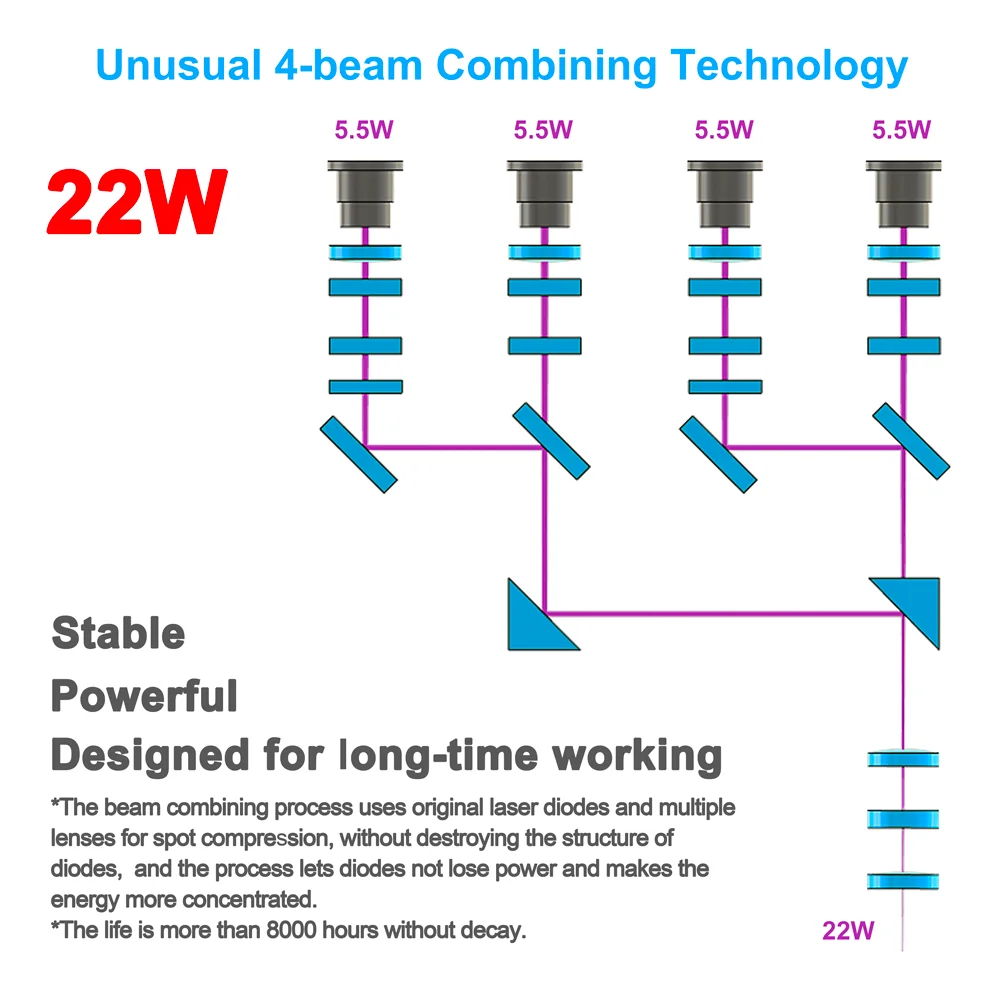

- Built-in 4pcs 5.5W laser diodes, optical power can reach 22W. Unusual beam combining technology and excellent dissipation design make the laser module more stable, great for long-time working.
- Can cut 10mm basswood plywood and 8mm black acrylic by one pass.

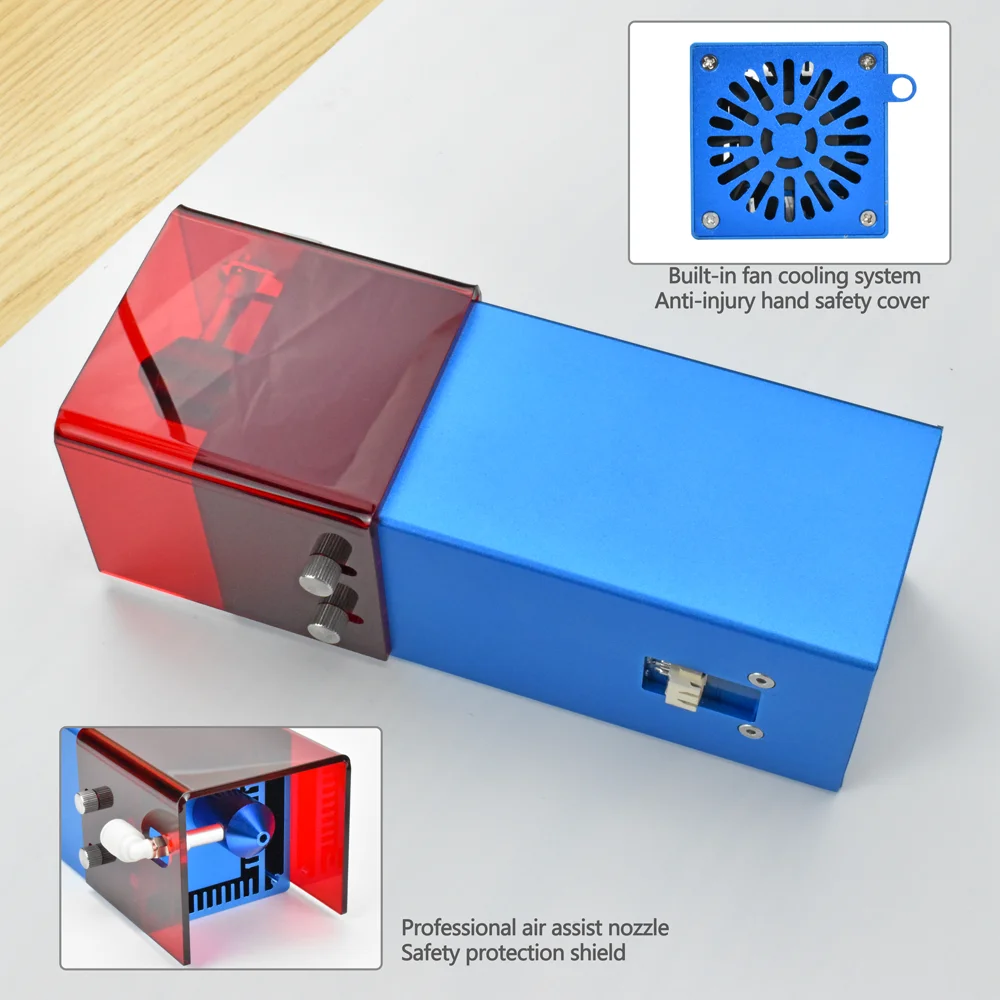

- Professional air assistance: highly improve cutting ability.
- Engravable Materials: MDF, Balsa, Paper, Wood, Fabric, Plastic, Leather, Plywood, Foam Paper, Anodized Aluminum, Stainless Steel, Ceramics, Bone, Coated glass, Black acrylic, Stone, Bamboo, Rubber, Leather, etc.
- Cuttable Materials: Cardboard, Non-woven Fabric, Plywood, MDF, Acrylic, some thin plastic board
- Note: Blue/purple/white/transparent materials, aluminum without oxide layer cannot be engraved.

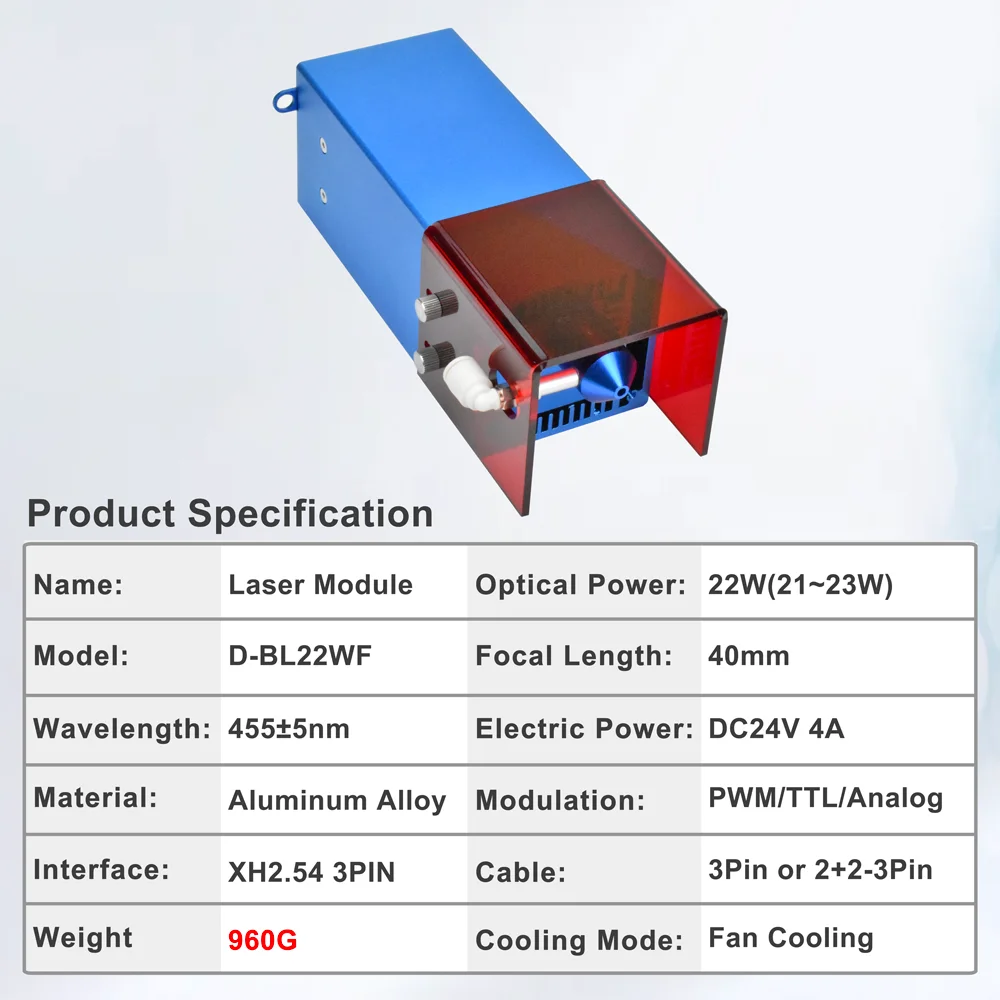

General Specifications:
Model:D-BL22WF
Heatsink Material:Aluminum + Acrylic
Luminous Color:Blue

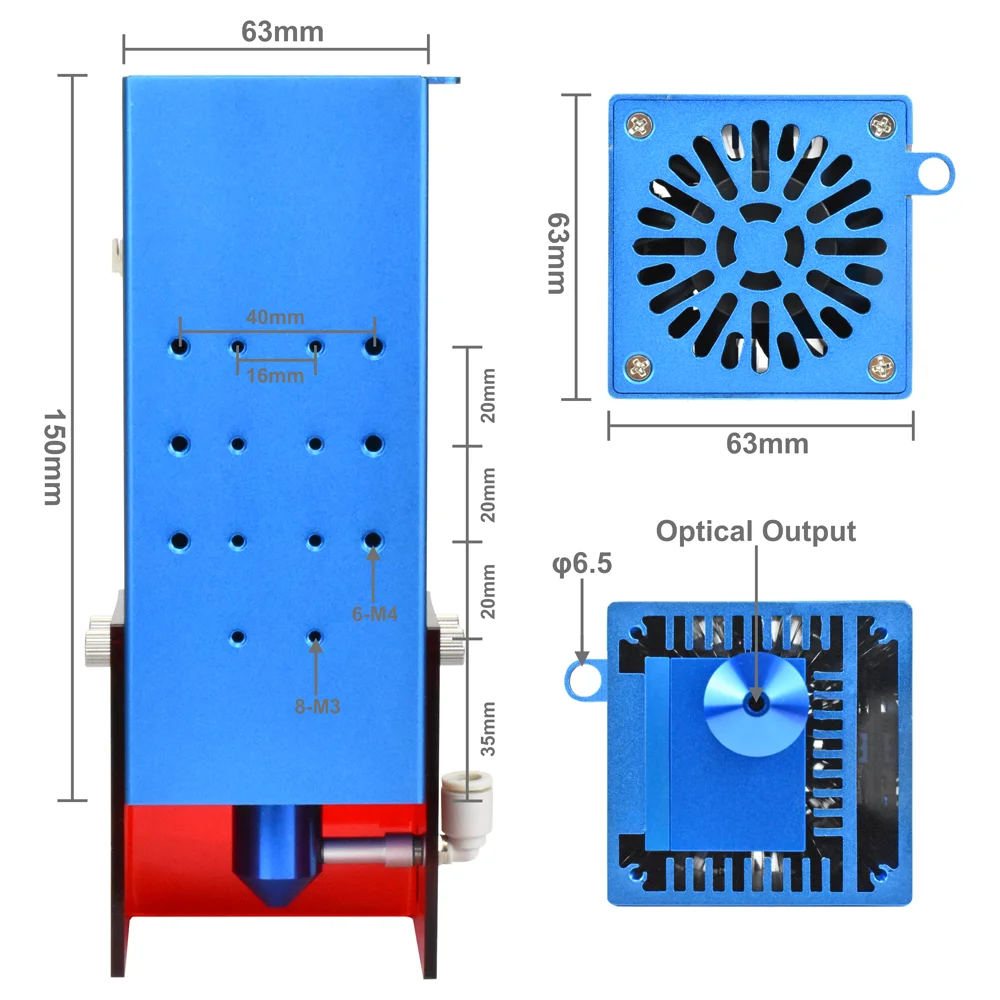

Module Size:63mm x 63mm x 192mm
TTL&PWM Modulation:YES, Compatible with Both TTL & PWM Modulation
Wire Rod: 22# 3P2.54
Product Net Weight: 960g
Technical Parameters:
Electric Power:24V 4A
Optical power output:22W (21~23W)
Laser Wavelength:455±5nm
Beam Shape:Dot ( Not Focusable )
PWM/TTL Input:DC5V

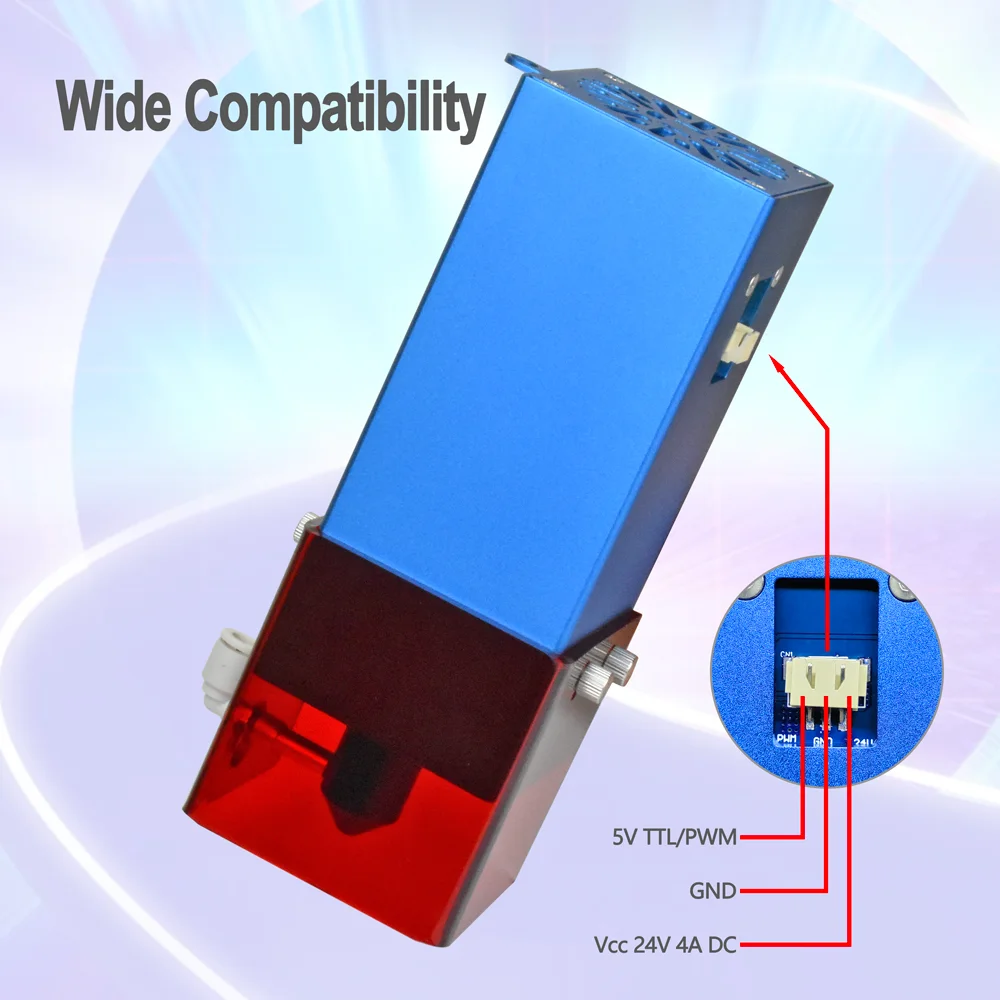

Input Interface:XH2.54-3Pin (+,-, PWM/TTL)
Operating temperature range:-10 ℃ ~ 40 ℃
Life Time:10000 hours

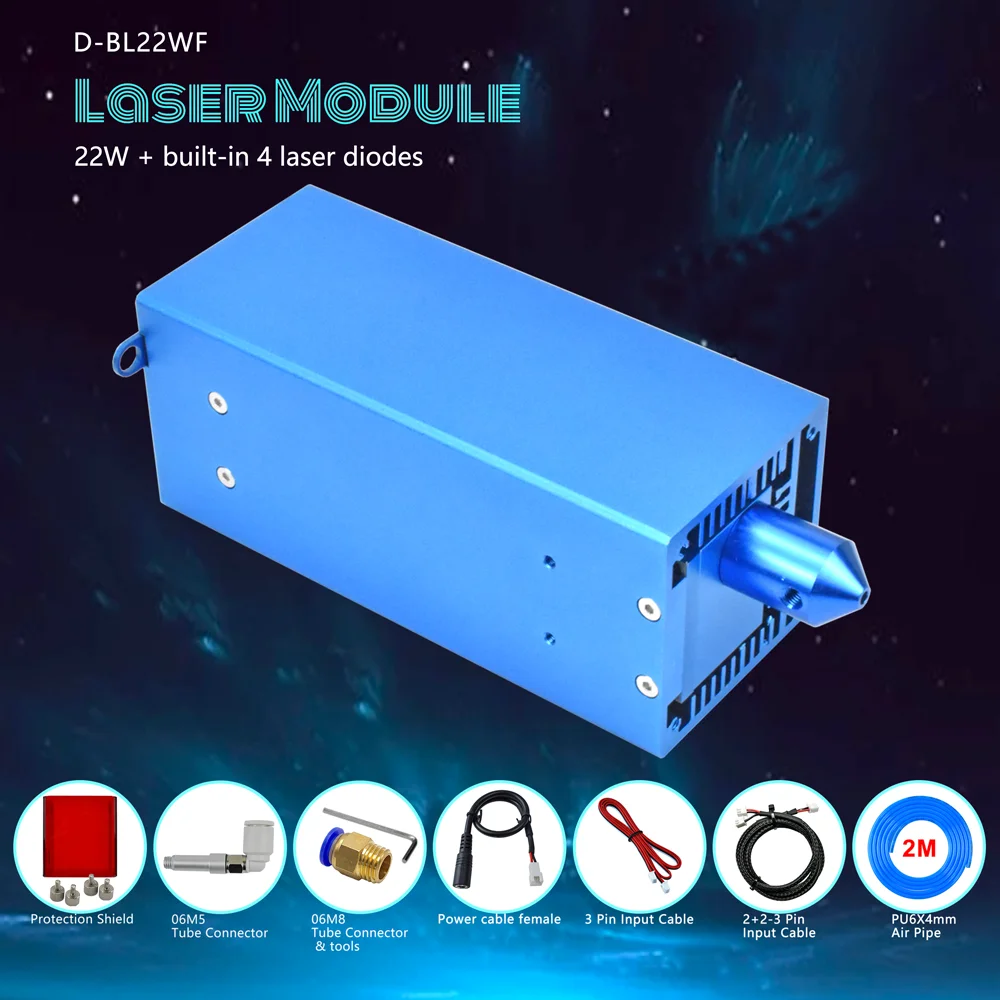

Package includes:
1* Optical 20W laser module with air nozzle
1* protection shield with screws
1* 06M5 tube connector
1* 06M8 Pump connector
1* power cable female
1* 3pin 85cm cable
1* 2pin+2pin to 3pin 80CM cable
1* 2M PU6X4mm air pipe
1* Hexagon wrench
![](https://ae01.alicdn.com/kf/S3f36406cdbab401190237b75b29239eer.jpg)
![](https://ae01.alicdn.com/kf/S21474fa3a1e74f93b6950c7fc61495e5S.png)
![](https://ae01.alicdn.com/kf/S02b2a3e81b7243b880609dc100efc324v.png)
![](https://ae01.alicdn.com/kf/S0a7a2d0f73e94e72b69ff5a588f782b1q.png)
![](https://ae01.alicdn.com/kf/Sc3535c5279124c4a9e3aa4d719f80c8cr.png)
![](https://ae01.alicdn.com/kf/S50a70921266e4557a87614baf9d46579K.png)
![](https://ae01.alicdn.com/kf/Sf656ea7b3d83475d8e723864fa0d57d5P.png)
![](https://ae01.alicdn.com/kf/S65b787884cc24d59b02dd66a02a704a2M.png)
